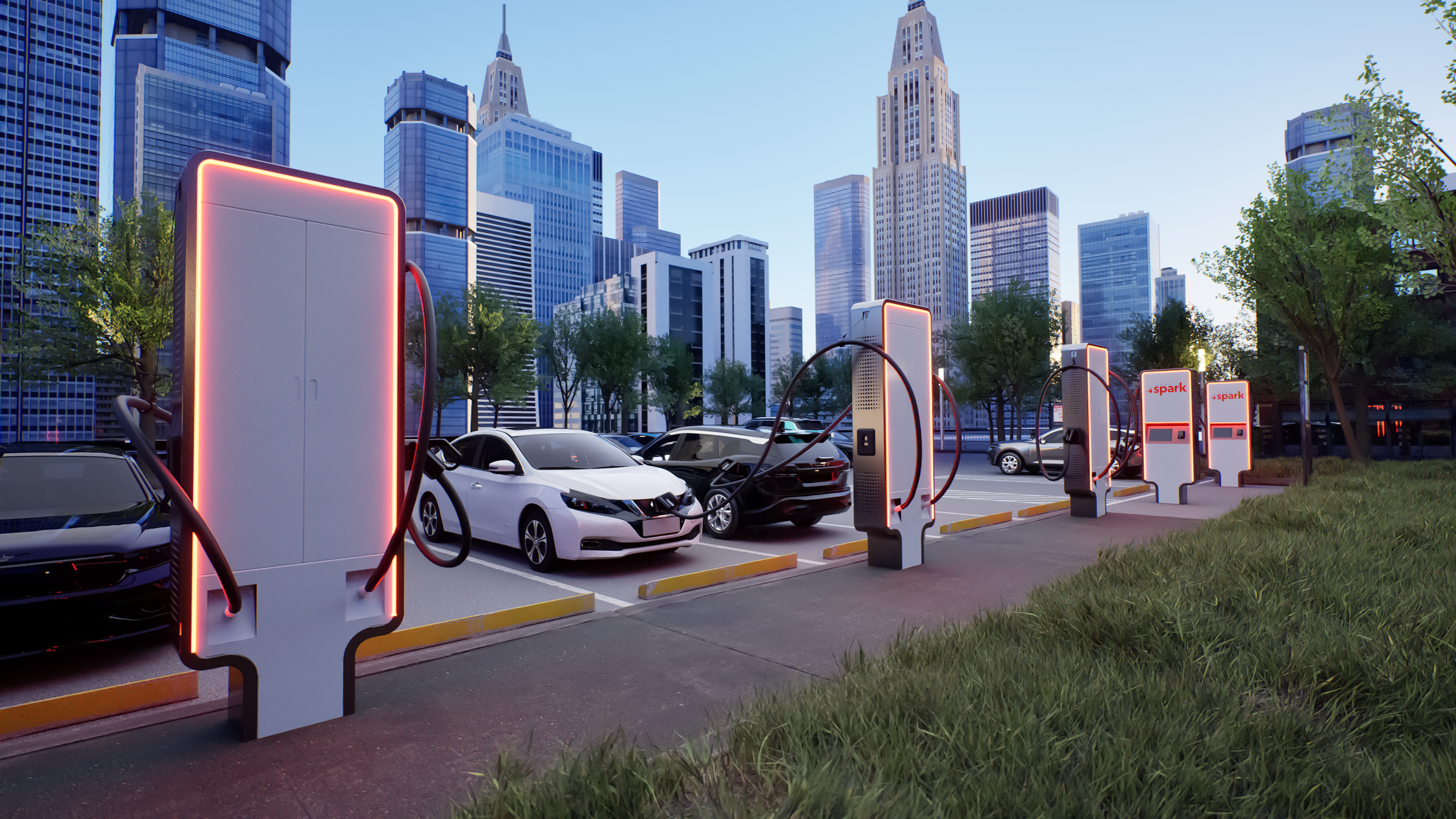

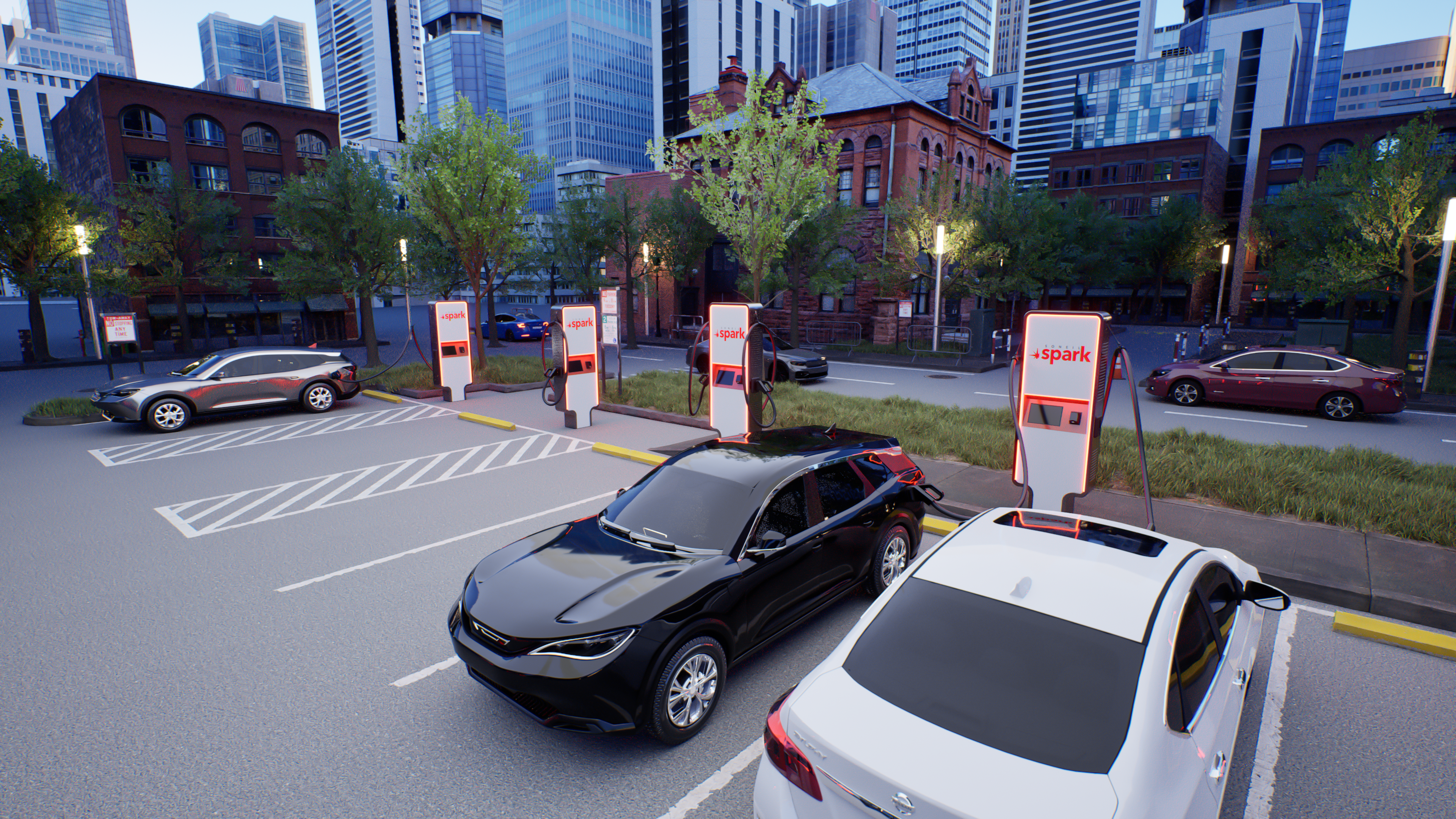

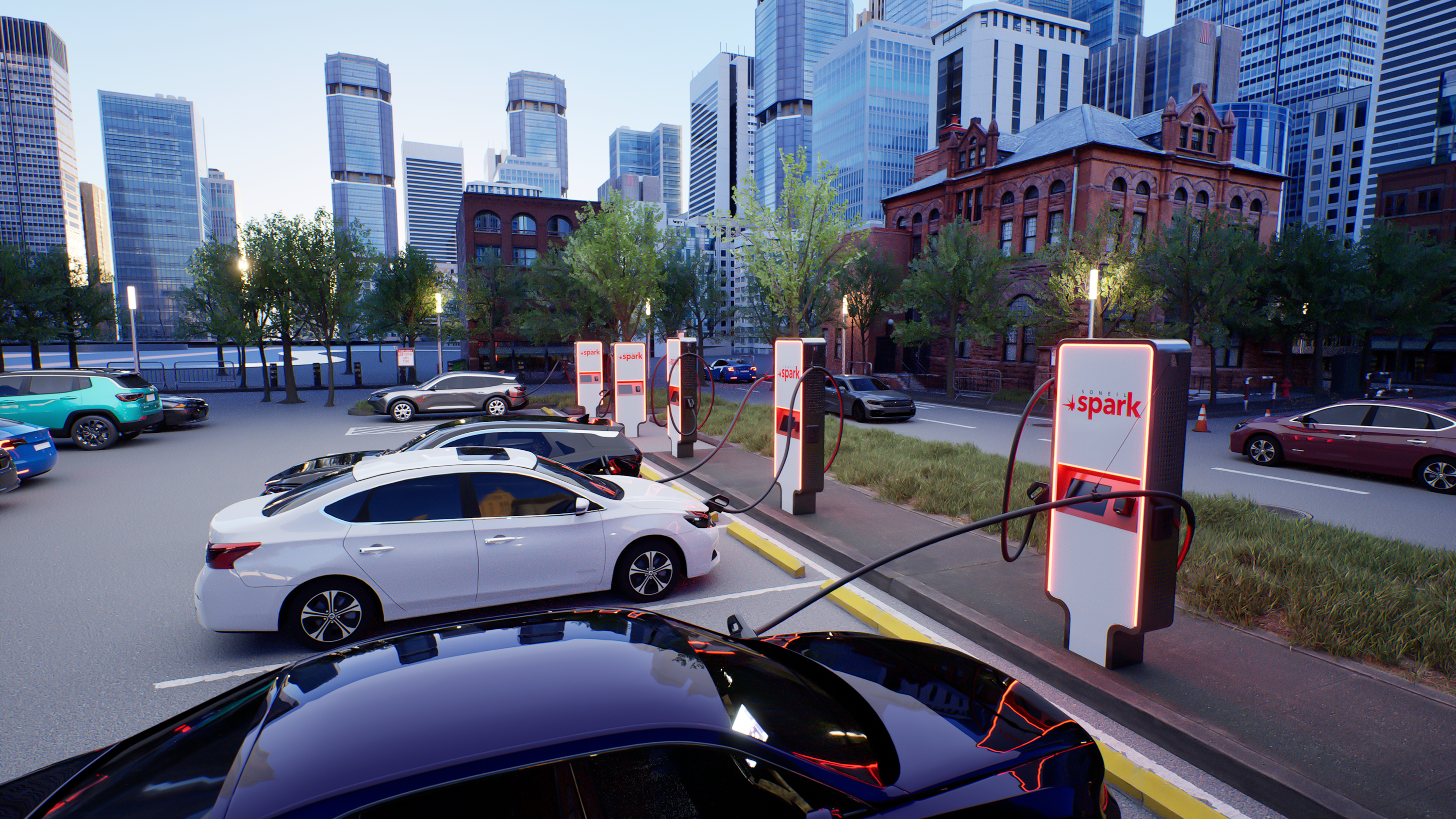

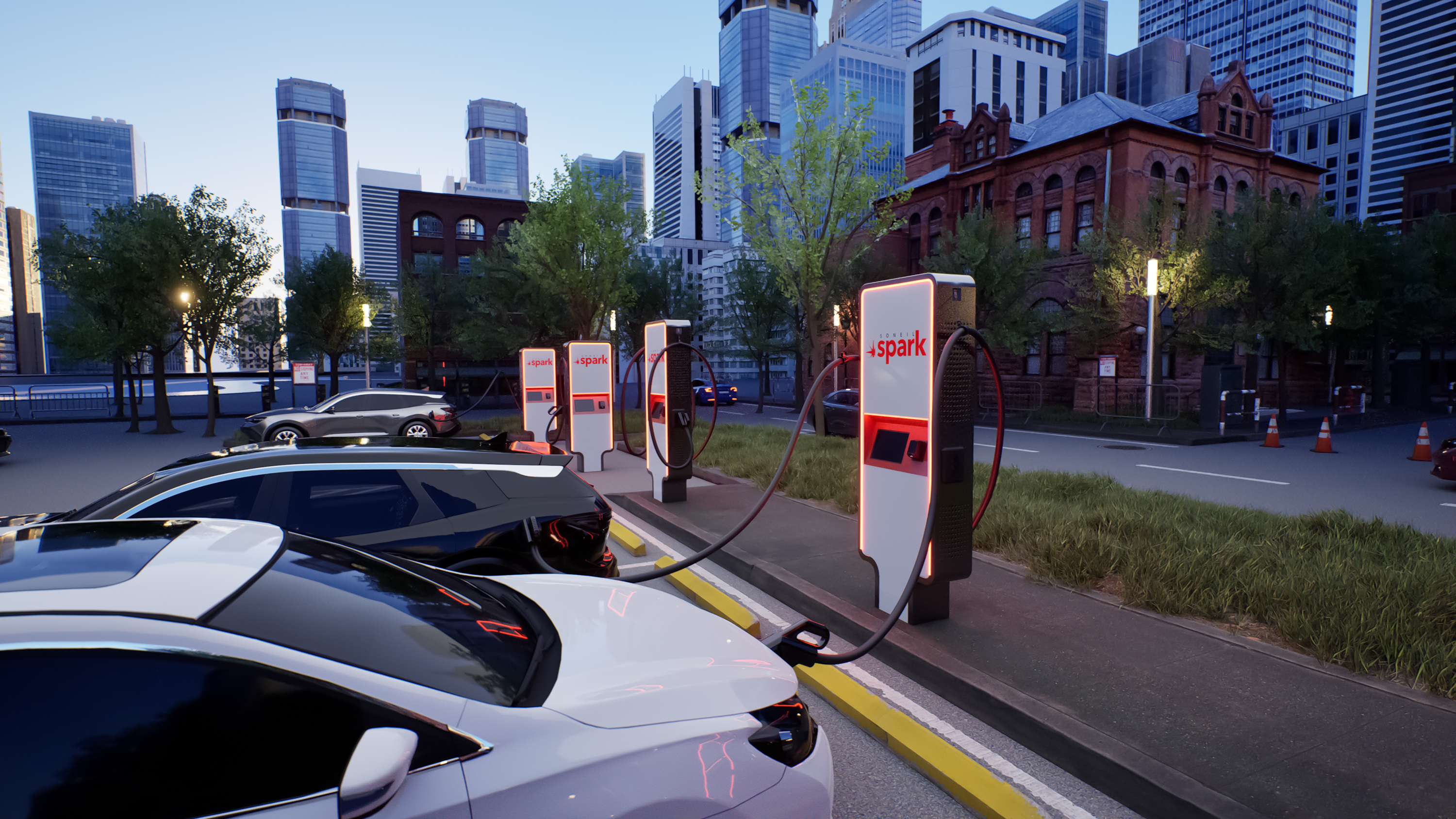

Spark DC Hub and Spoke System

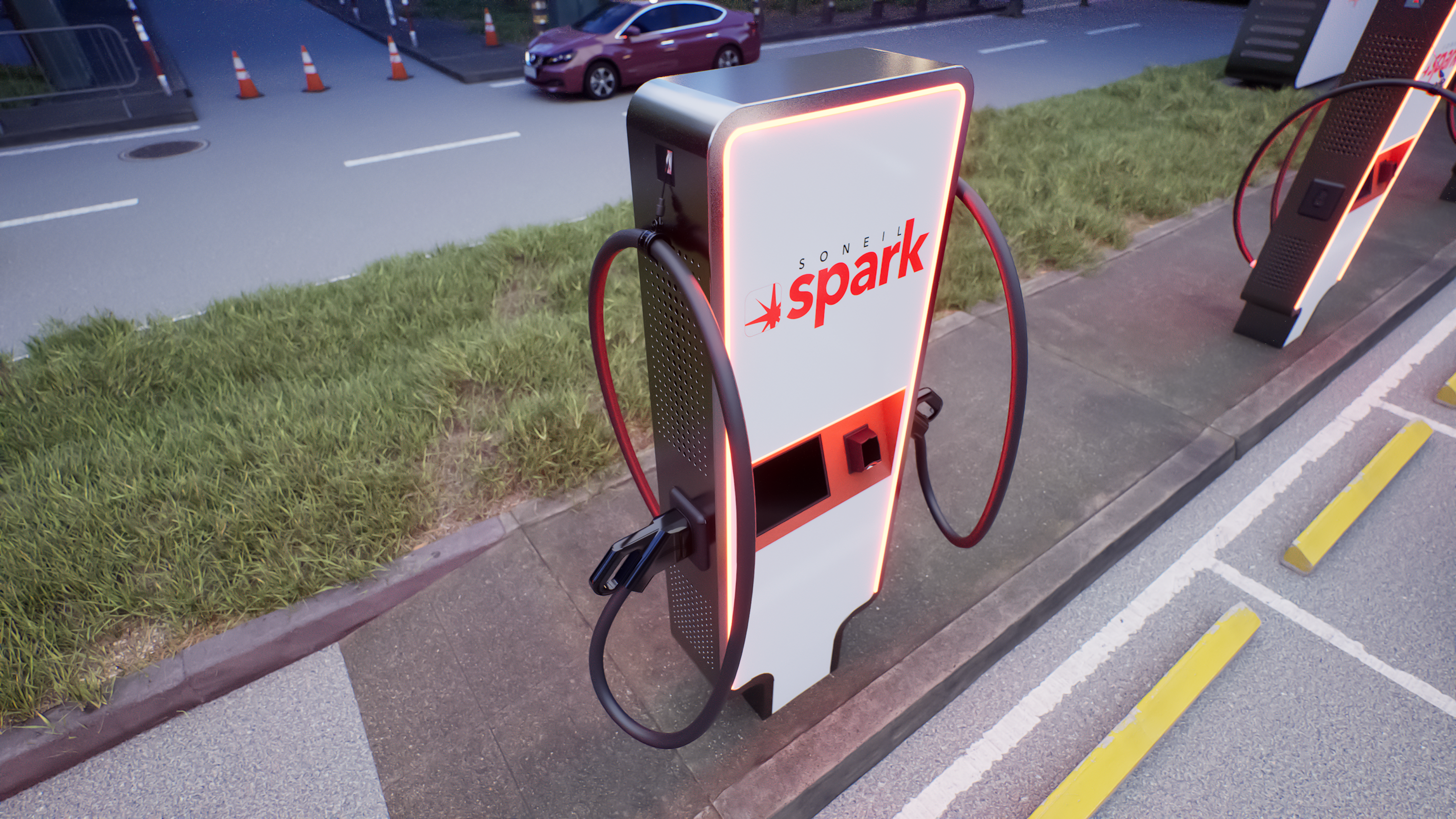

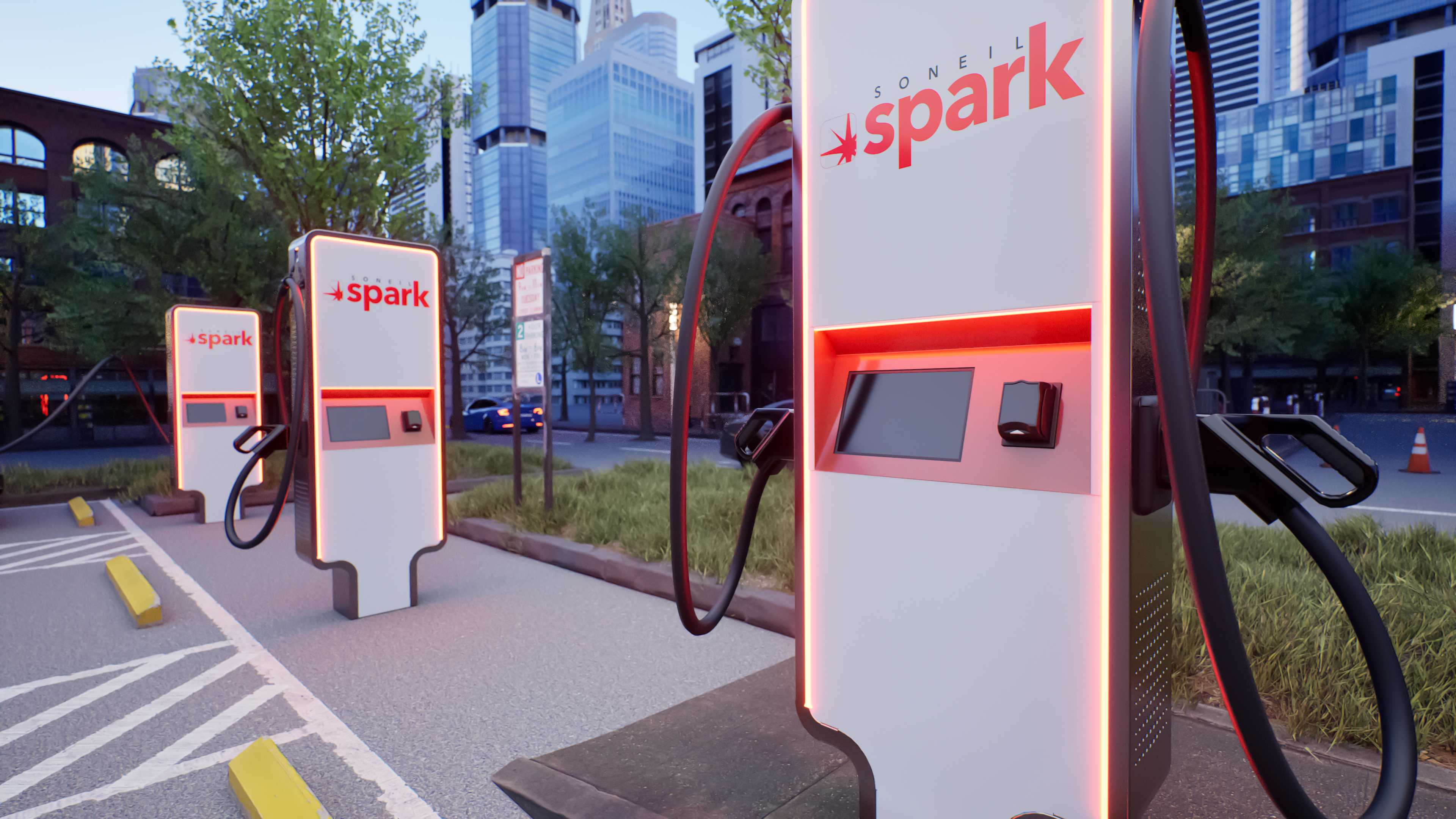

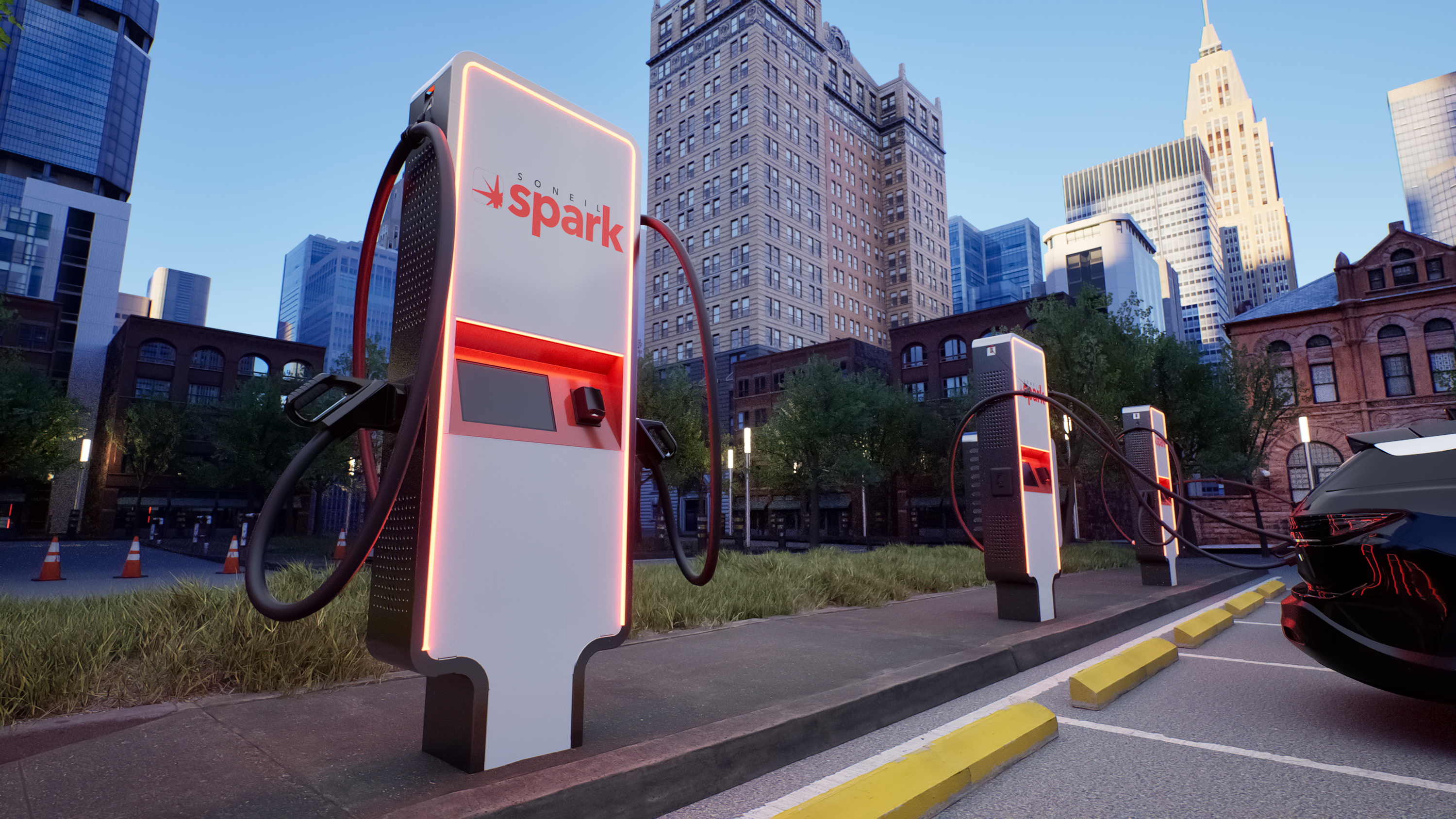

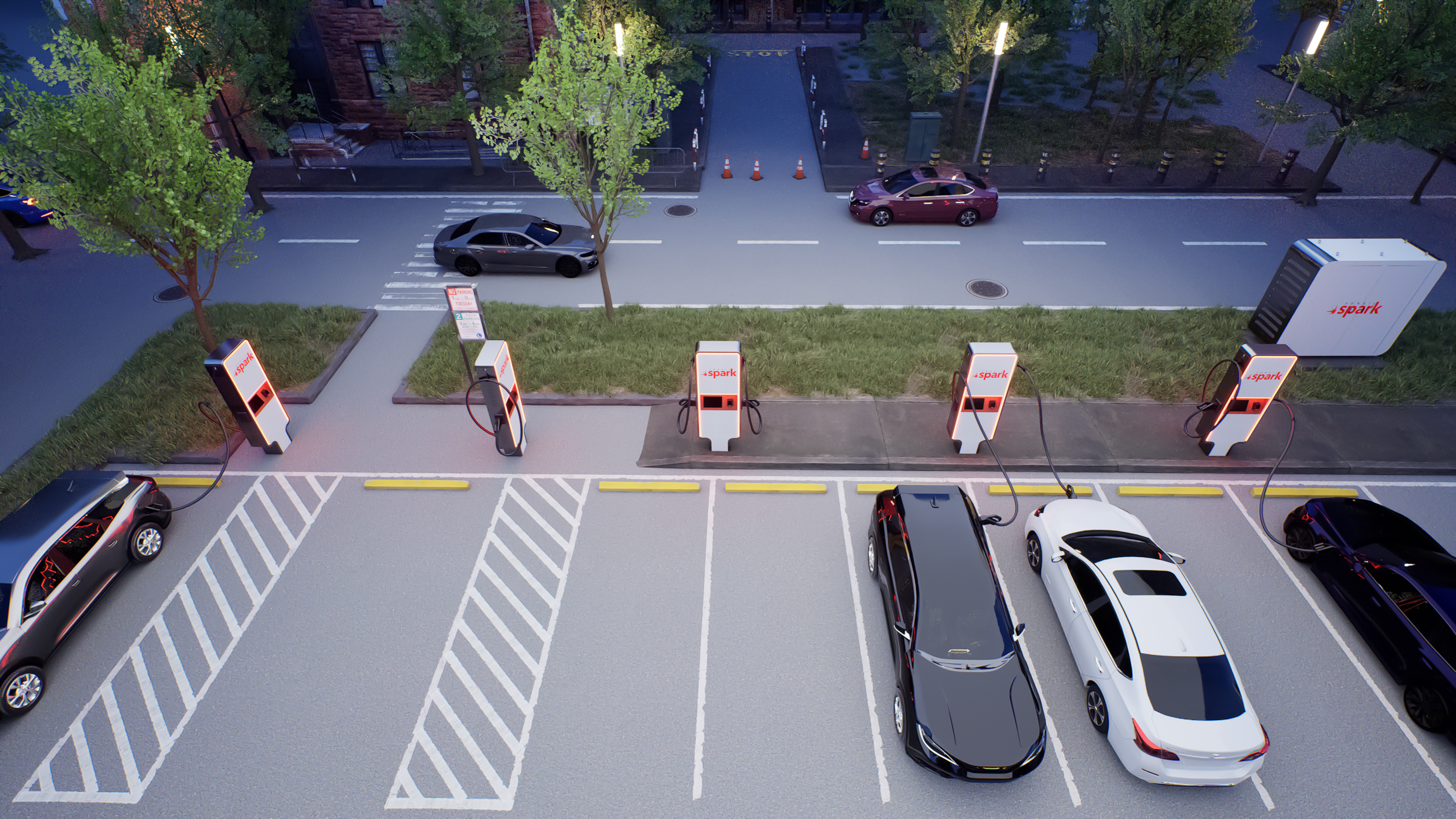

Our innovative modular design allows our centralized power station (hub) to serve up to three charging stations (spokes) that feature ultra-fast charging performance and a minimal footprint. Each spoke has an outdoor-readable touchscreen display, credit card payment terminal, NFC/RFID reader and two CCS charging connectors.

• Convenient remote monitoring and operation through our dedicated charger management platform means taking control of charging remotely 24/7.
• Our charging station management platform also provides easy administration of charging terminals and effortless billing to users.
• DC Level 3, 500kW charger (250kW per charging connector).
• Multiple charging options include utilizing the Spark App, scanning the QR code on the charger with a smartphone, using a registered RFID card or by simply tapping a credit card.
• Charging cable length: 5 meters/16.4 feet
• Network connectivity: Ethernet, 4G, WiFi (dual-redundant network connectivity).
• Rapid-response service notification button on each user terminal.
• Supply input: 480 or 600VAC
• Communication protocol: OCPP 1.6J
• 2-year limited warranty

To learn more about commercial charging systems, you may be interested in reading the following posts: Getting Started with EV Charging and Increase Your Business Revenue with EV Charging Services.

To learn more about Spark’s commercial products, click here.

Specifications

• Connectors:  CCS1 + CCS1
• Output Power: 500kW (250kW per charging connector)
• Output Voltage: 1000VDC
• Output Max Current: 500A (250A per charging connector)
• Supply Input (to hub): 480 or 600VAC
• Supply Frequency: 60Hz
• Input Max Current (to hub): 200A
• Grounding Detection: <2mA
• Efficiency: >96 percent

• Power Factor: >0.99
• Harmonic Current: <5 percent

• Ripple Voltage: <1 percent

• Network Connectivity: Ethernet/4G/WiFi
• Communication Protocol: OCPP 1.6J
• Charging Cable Length: 5 meters/16.4 feet

• Start-up Mode: Automatic charging/RFID card/App/QR reader/CC
• LCD Display: 294.6mm/11.6-inch LCD touch screen
• Protection: Over/under voltage, Short-circuit protection, Over/under temperature, Surge protection, Communication failure detection
• IP rating: IP54
• Emergency Stop Button: Yes
• Cooling Method: Cooling Fan
• Operating Temperature: -25°C to +50°C/-13F to +122F

• Operating Humidity: 95 percent RH (non-condensing)
• Certification: FCC/IC, ETL
• Warranty: 2-year limited warranty


Specifications subject to change.
