Home EV Charging

Level 2 home charging from 40 A to 80 A. Plug-in or hardwired, built in Canada, controlled from the Spark App.

Spark AC 40A NEMA Charger

Spark AC

40ANEMA Plug-in

Plug-in (NEMA 14-50), no hardwiring needed

Best for most homes and renters. Easy install, lower cost.

~7× faster than a wall outlet

Up to 40A · ≤ 9.6 kW

  • Easy plug-in install, save on wiring
  • J1772 or NACS connector · 7.5 m cable
  • WiFi + Spark App · IP66 · 5-yr warranty
$415.99 CAD
Learn more
★ Most popular Spark AC 48A EV Charger (hardwired)

Spark AC

48AHardwired

Hardwired, clean and permanent

Best for homeowners who want faster, permanent charging for larger-battery EVs.

~8× faster than a wall outlet

Up to 48A · ≤ 11.5 kW

  • Faster daily charging, future-ready
  • J1772 or NACS connector · 7.5 m cable
  • WiFi + Spark App · IP66 · 5-yr warranty
$420.99 CAD
Learn more
Spark AC 80A EV Charger (hardwired)

Spark AC

80AHardwired

Hardwired, needs higher-amp service

Best for big-battery EVs/trucks & two-EV households.

~14× faster than a wall outlet

Up to 80A · ≤ 19.2 kW

  • Fastest home charging available
  • J1772 or NACS connector · 7.5 m cable
  • Adjustable 6 – 80 A · 5-yr warranty
$1,499.99 CAD
Notify me when availableLearn more

Not sure your panel can handle it?

Most homes can. The 40A plug-in model runs on a standard NEMA 14-50 outlet, and our team will talk your electrician through the load calculation before you buy.

See what rebates you qualify for

Compare

Which charger fits your home?

Three Level 2 chargers, one platform: pick by install type and how fast you want to charge.

Spark AC 40A$415.99NEMA Plug-in
Best for Most homes & renters
Charging speed ~7× faster
Max amperage Up to 40A
Max power ≤ 9.6 kW
Install type Plug-in (NEMA 14-50)
Circuit breaker 50A
Copper wire gauge 8 AWG
Connectors J1772 or NACS
Cable length 7.5 m / 24.6 ft
Adjustable amperage up to 40A
WiFi + Spark App Yes
Over-the-air updates Yes
Water resistance IP66
Operating temp -30°C to +50°C
Safety Certifications UL, CSA, FCC/IC, Energy Star
Warranty 5 years
View charger
★ Most popular Spark AC 48A$420.99Hardwired
Best for Faster permanent charging
Charging speed ~8× faster
Max amperage Up to 48A
Max power ≤ 11.5 kW
Install type Hardwired
Circuit breaker 60A
Copper wire gauge 6 AWG
Connectors J1772 or NACS
Cable length 7.5 m / 24.6 ft
Adjustable amperage up to 48A
WiFi + Spark App Yes
Over-the-air updates Yes
Water resistance IP66
Operating temp -30°C to +50°C
Safety Certifications UL, CSA, FCC/IC, Energy Star
Warranty 5 years
View charger
Spark AC 80A$1,499.99Hardwired
Best for Big-battery EVs & trucks
Charging speed ~14× faster
Max amperage 6A to 80A
Max power ≤ 19.2 kW
Install type Hardwired
Circuit breaker 100A
Copper wire gauge 3 AWG
Connectors J1772 or NACS
Cable length 7.5 m / 24.6 ft
Adjustable amperage 6A to 80A
WiFi + Spark App Yes
Over-the-air updates Yes
Water resistance IP66
Operating temp -30°C to +50°C
Safety Certifications UL, CSA, FCC/IC, Energy Star
Warranty 5 years
View charger

Breaker & wire figures are for 75°C copper conductors at typical runs. Always confirm sizing with a licensed electrician. Aluminum wiring requires a larger gauge.

How installation works

LED guide

LED status indicator guide

Stay informed about your charger status with the intuitive LED indicators.

Getting set up

Blue · Flashing Powering onCharger is booting up and initializing
White · Flashing Pairing modeCharger is in pairing mode for network setup
Blue · Solid Ready to charge (unpaired)Charger is ready but not connected to the network
White · Solid Ready to charge (paired)Charger is ready and connected to the network

Charging

Yellow · Solid Plugged in, initializingVehicle is connected; preparing to charge
Green · Running ChargingVehicle is actively charging
Green · Flashing Scheduled chargingCharging is scheduled to start later
Green · Solid Charging completedCharging is complete

Needs attention

Off · Off No powerCharger is not receiving power
Red · Flashing ErrorCharger has encountered an error

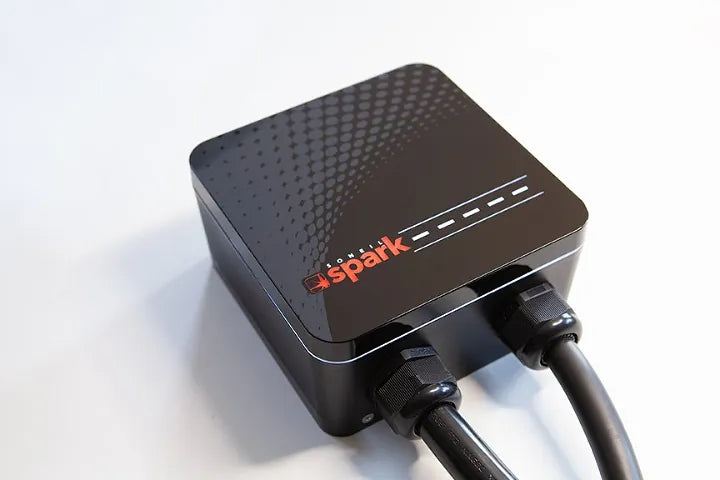

AutoGuide reviews the Soneil Spark AC residential charger

In the press

AutoGuide review

Leading automotive authority AutoGuide.com reviews the Soneil Spark AC Residential charger, and highlights customer-friendly advantages.

Read the review

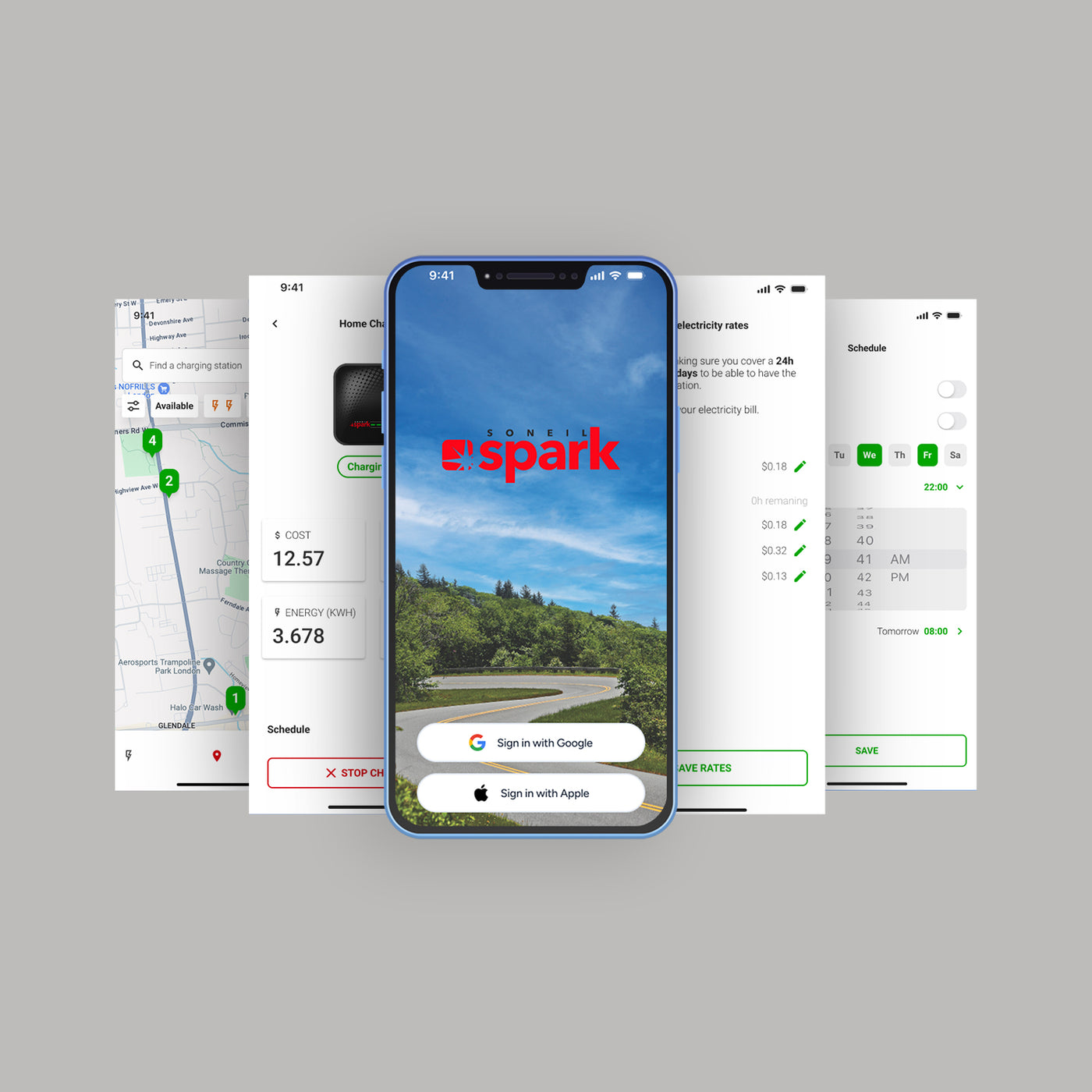

Spark App charging dashboard on a phone

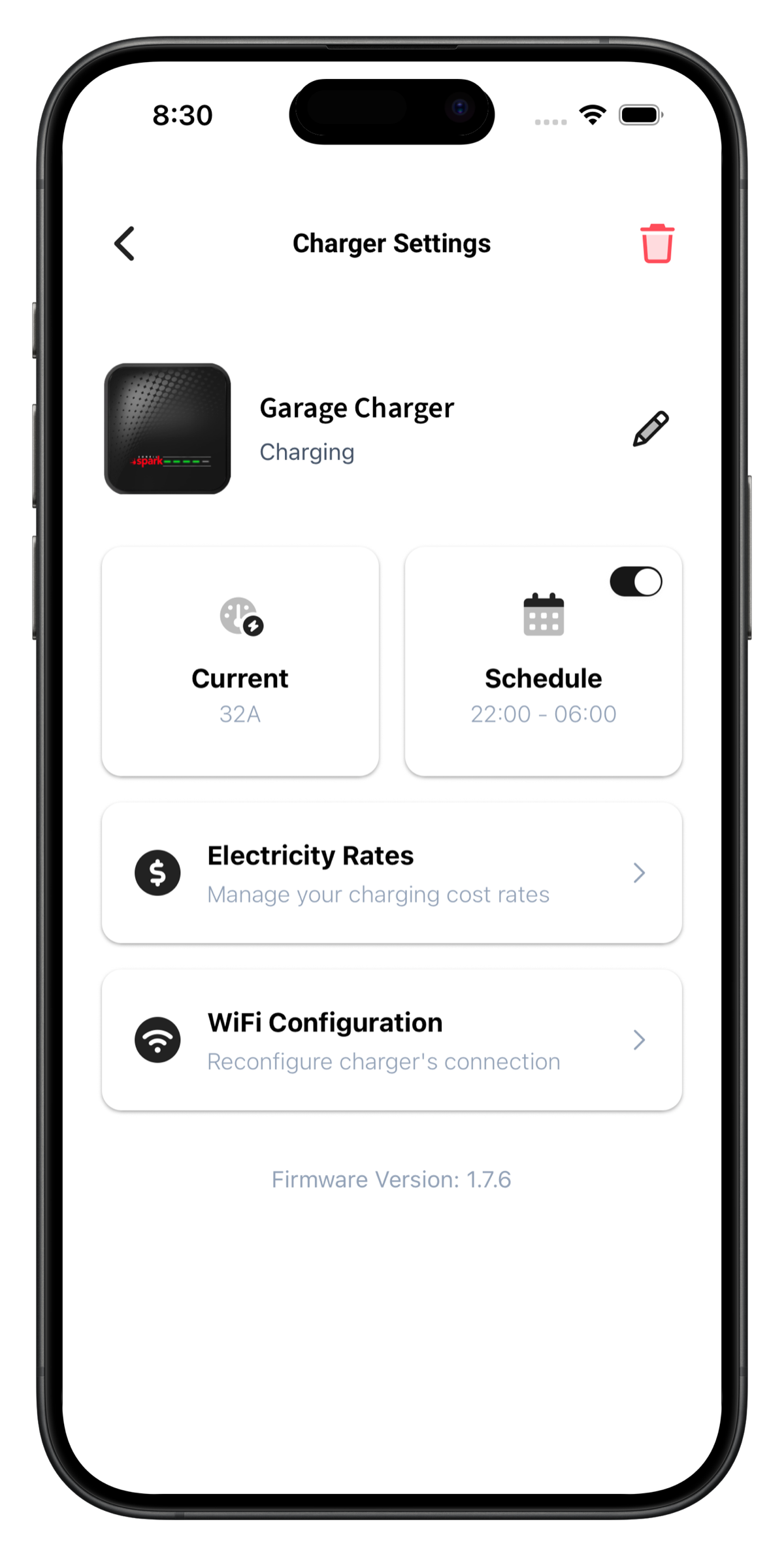

Smart charging

Meet the Spark App

Whether you are monitoring your own EV charging or a commercial fleet, the Spark App lets you:

  • Schedule your charging
  • Track what you spend
  • Safely lock the charger when you're away
  • Adjust charging current from 6 to 80A
  • Control and access your complete charging activity and history
Learn more

FAQ

Home charging questions

Do I need an electrician to install it?

Hardwired installs should be completed by a licensed electrician. Mounting and connecting the charger typically takes an electrician under an hour. Total time depends on your panel and the wiring run. The 40 A plug-in model works with a suitable 240 V (NEMA 14-50) outlet.

Which EVs are Spark chargers compatible with?

Spark AC chargers use the universal North American connector and work with every EV on the road, including Tesla vehicles with an adapter.

Is there a warranty?

Yes. Spark residential chargers are backed by a 5-year warranty. Hardware carries UL, CSA, FCC/IC and Energy Star certifications.

Can't find it? Ask our team.
