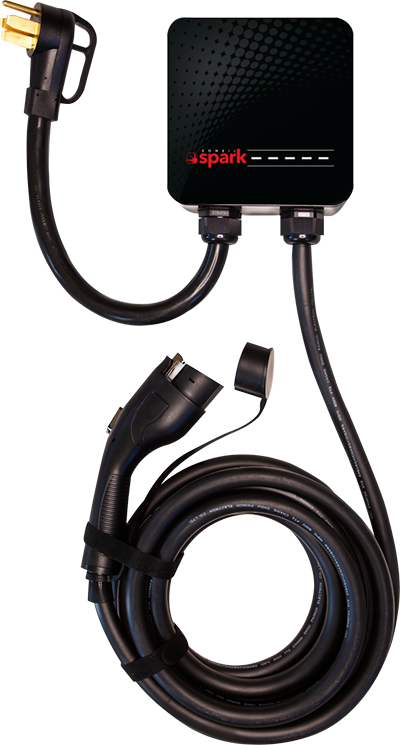

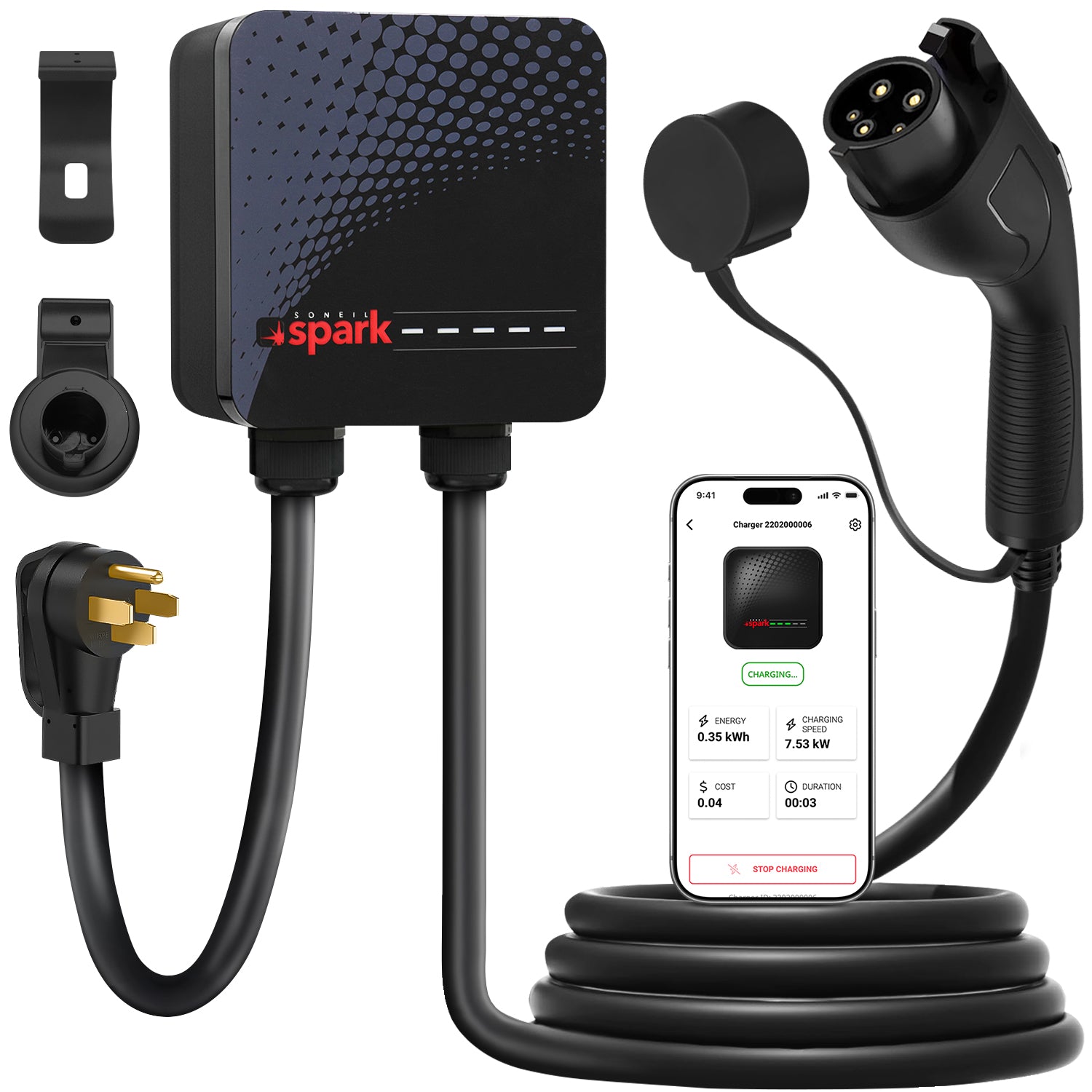

Spark AC 40A NEMA Charger
Key Features
- Compatible with All J1772 models
- 7x Faster Than Level 1 Charging
- Adjustable Amperage up to 40A
- 5-year warranty
- Convenient WiFi connectivity
- 7.5M (24.6ft) Cable Length for Flexible charging
- IP55 Water Resistant with Multiple Safety Protections
Model: 40A NEMA
EV Charger Level: Level 2 AC
Connector Type: Universal SAE J1772
Charging Cable Length: 7.5 m / 24.6 ft
Output Power Rating: ≤ 9.6 kW
Output Current: up to 40A
Weight: 15 lbs
Dimensions: 180 x 180 x 92 mm
Input/Output Voltage Rating: 208–240 VAC
Operating Temperature Range: -30°C to +50°C
Display & Indicators: LED Indicator: Charger Status
Certifications: ETL Listed - UL 2594 / CSA C22.2 No. 280, FCC/IC
CA: 2-3 Business Days - US: 3-5 Business Days
Why Choose Spark EV Chargers
Check our Spark Charger
Why Choose Spark EV Chargers
Useful Resources
LED STATUS INDICATOR GUIDE
When powering on, the LED flashes blue while the charger boots and initializes. A solid blue LED means it is ready to charge but not yet connected to the network. A flashing white LED indicates pairing mode for network setup, and a solid white LED shows it is ready and connected. No LED (off) means no power. A flashing red LED indicates an error. A solid yellow LED shows a vehicle is connected and preparing to charge. A running green LED indicates active charging, a flashing green LED indicates scheduled charging, and a solid green LED means charging is complete.
