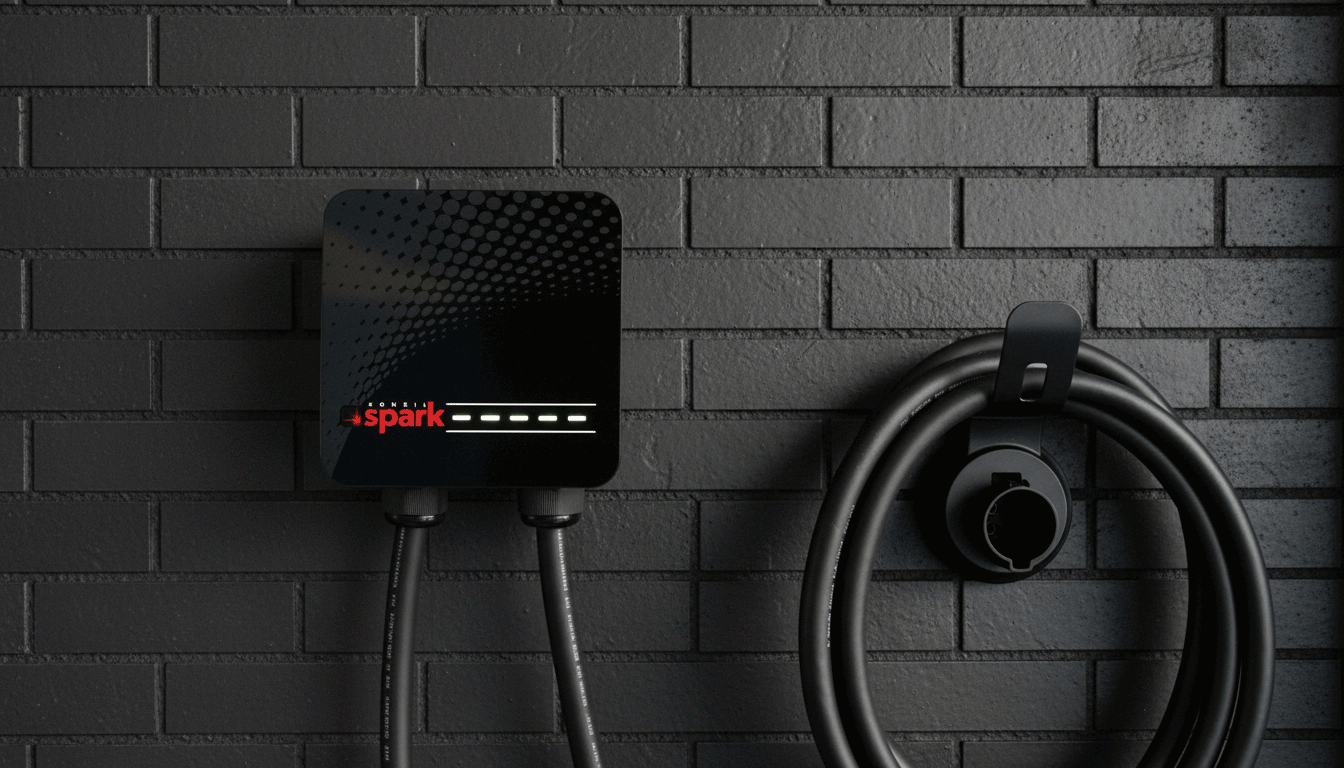

Spark AC 40A NEMA Charger

Compatible with all EV and hybrid plug-in vehicles, this rugged wall-mount residential charger offers 240V-40Amp plug-in convenience and WiFi connectivity.

• With easy installation, this charger can be located anywhere a NEMA 14-50R outlet is available and saves the cost of hard-wired installation.
• Safe for installation outdoors with an IP55 rating.
• Compact size (180 x 180 x 100mm/7.0 x 7.0 x 3.9 inches without cables) makes this charger a convenient addition to homes and apartments.
• Premium charger cable (Universal J1772) is highly durable and 7.6-meters/25-feet long.

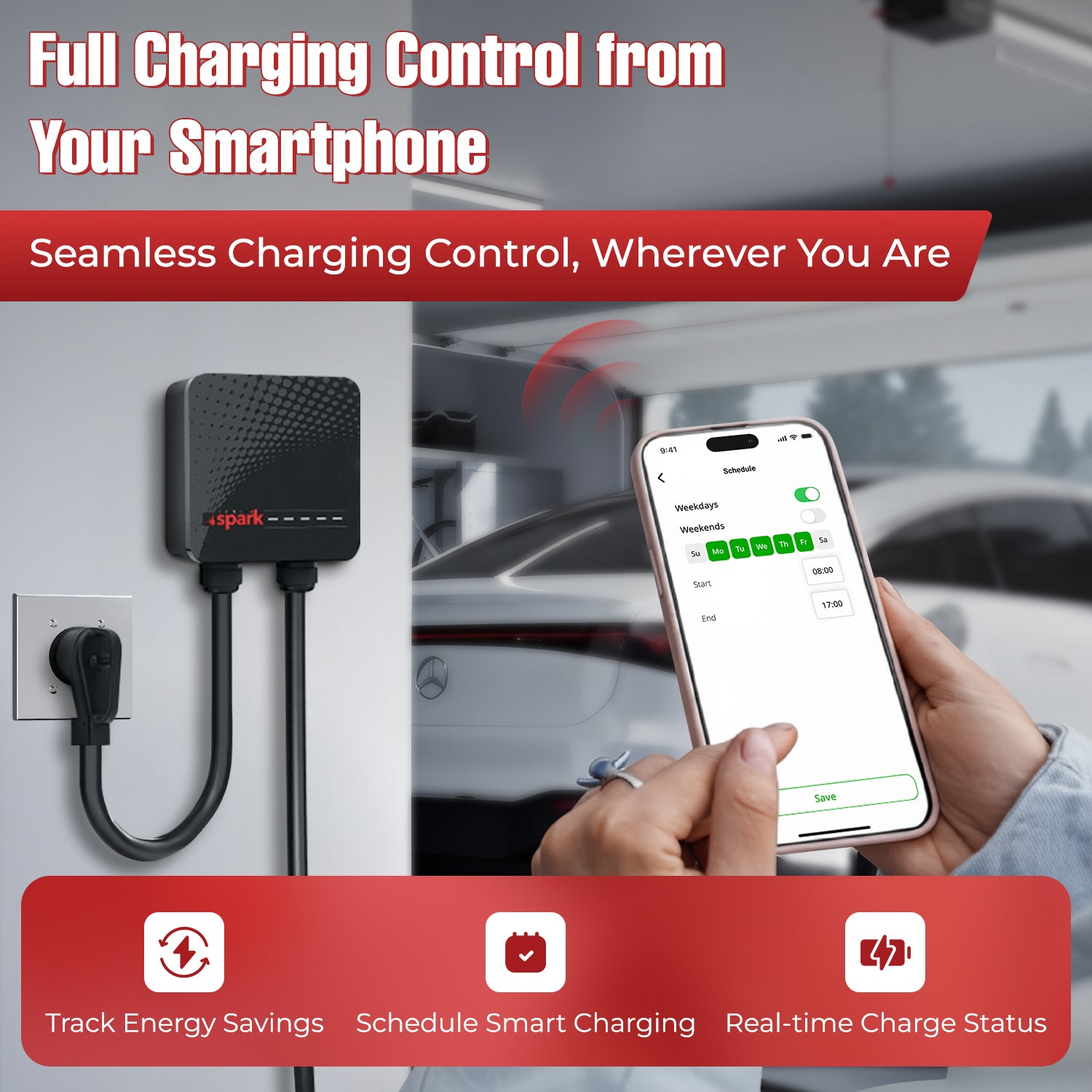

• Convenient WiFi connectivity
• Wide operating temperature range: -30C to +50C/-22F to +122F

• User interface: Spark App, Multicolor LED status indicator

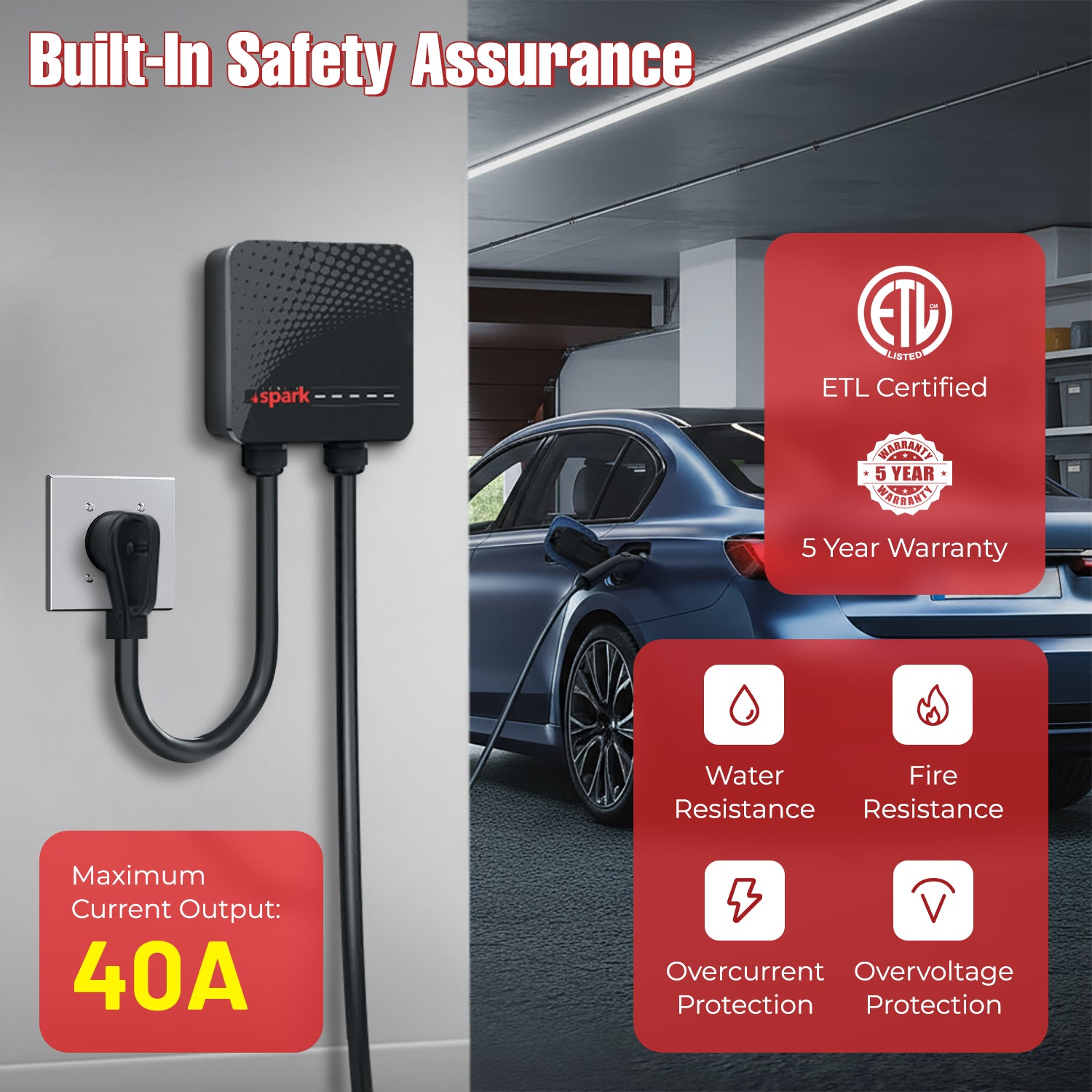

• Safety features: Over-temperature monitoring, Surge protection, Power outage recovery, GFCI protection, Plug temperature monitoring
• Certification: FCC, ETL
• Designed and assembled in Canada (Ontario).
• 5-year limited warranty

Read our post Getting Started with EV Charging to learn more about the different types of charging systems.

Specifications

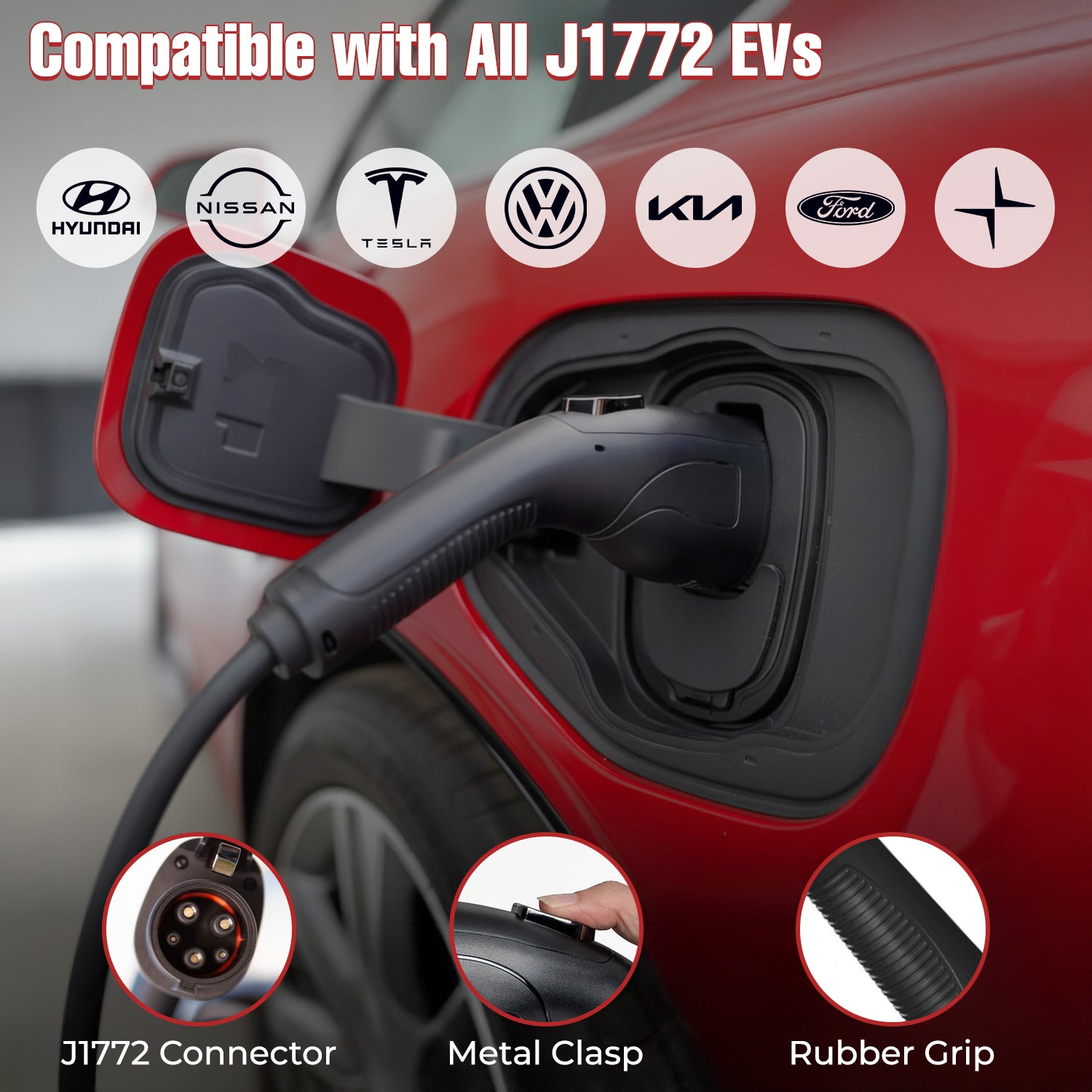

• Connector Type: SAE J1772
• Maximum Current: 40Amps
• User Interface: Spark App, Spark Portal
• Input Voltage: 240VAC
• IP Rating: IP55
• Weight: 6 kg/13.2 pounds

• Dimensions: 180 x 180 x 100mm/7.0 x 7.0 x 3.9 inches

• Charger Status: Spark App, front cover LED
• Cable Length: 7.6 meters/25 feet
• Configurable Current: 6A to 40A
• Important note: Tesla vehicles require the universal charging adapter that comes with every Tesla vehicle.
• Warranty: 5-year limited warranty

Specifications subject to change.
